Ethernut Fuses
Introduction
This article presents detailed information about ATmega128 fuse settings with focus on the Ethernut hardware. While reading this, you should have the ATmega128 datasheet in hand.
The AVR microcontroller, of which the ATmega128 is a member, contain a number of fuses to enable or disable special features like crystal clock options, reset options etc. To program (enable) a fuse bit, you use the same software and hardware as for uploading your program code into FLASH memory or configuration data into EEPROM memory. Like FLASH and EEPROM memory, fuses can be programmed (to zero) or unprogrammed (to one). However, when erasing an AVR device, the fuses will be preserved.
A word of caution. Playing around with fuse settings is risky, as long as you don't take special care. Wrong fuse settings may completely disable the device.
If you purchased an assembled Ethernut from one of its distributors, you don't need to care about fuse settings in the first step. Later, if you want the force the ATmega to jump into the bootloader upon reset or if you want to clear the EEPROM when erasing the ATmega, then this is the place you have been looking for.
If you own an older ATmega103 based Ethernut board, then there is not much you can do with the fuses.
If you built your own Ethernut compatible board, you have to modify the original fuse settings. Otherwise you won't be able to run Nut/OS, at least not with full speed and standard baud rates for the serial port.
Required Hardware
There are several programming adapters (AKA programming dongles) available.
We recommend the
SP Duo Programmer from Embedded Creations,
which offers a few advantages, mainly
- SPI + JTAG (most low-cost programmers offer SPI only)
- RS-232 interface (many other programmers use the parallel printer port)
However, the author didn't test this device with Linux. Other users reported, that it is working. Blame them, not me, if it is not.
More information about programming hardware are presented here.
Required Software
Atmel offers AVR Studio for Windows for free. This isn't just a simple programming software, but an integrated development environment with assember, debugger, simulator, source code editor and other goodies.
Originally written by Uros Platise, uisp is a command line tool for the Linux operating system. It's currently maintained by Ted Roth and Marek Michalkiewicz and available at savannah.nongnu.org. A port to the Windows operating system is included in the WinAVR distribution.
More information about programming software is given here.
Ethernut Programming Connector
All Ethernuts provide at least one 10-pin programming connector. Unfortunately Atmel decided to use the same physical connector type for JTAG and SPI. Using the wrong connector with your programming adapter will at least blow the power fuse on the Ethernut 2.x and may even destroy your Ethernut 1.x boards.
| Board Version | SPI (aka ISP) | JTAG |
|---|---|---|
| Ethernut 1.1 | Available | Not available for ATmega103 CPU. |
| Ethernut 1.3 Rev-F and below | Available | Requires special PORT F adapter |
| Ethernut 1.3 Rev-G | Available | Available |
| Ethernut 2.0 Rev-A | Available, see JP4 | Available, see JP4 |
| Ethernut 2.1 Rev-B | Requires special expansion port adapter | Available |
This table somehow reflects the Ethernut design history. While JTAG wasn't
available
in the early days, the latest board revision provides JTAG only, unless you
build your

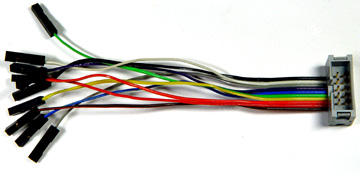

own adapter. The AVR JTAGICE comes with a split cable, which can be used to
create
such an adapter with flying cables. Refer to the schematics of your board to
connect
the wires.
Some pictures about how to connect a programming adapter to the Ethernut board are available here.
ATmega128 Factory Settings
We can use uisp on the command line to read the fuses of the ATmega 128, which had been shipped from the factory and not yet modified. The command line parameters in our example fit for the SP Duo connected to the first serial port. When using a different adapter, please refer to its manual for the correct parameters. Note, that uisp expects Linux device names for the serial port, even if running on Windows. If the adapter is connected to the second serial port, then replace /dev/ttyS0 with /dev/ttyS1.
# uisp -dprog=stk500 -dserial=/dev/ttyS0 -dspeed=115200 -dpart=atmega128 --rd_fuses Firmware Version: 49.48 Atmel AVR ATmega128 is found. Fuse Low Byte = 0xe1 Fuse High Byte = 0x91 Fuse Extended Byte = 0xfd Calibration Byte = 0x00 -- Read Only Lock Bits = 0xff BLB12 -> 1 BLB11 -> 1 BLB02 -> 1 BLB01 -> 1 LB2 -> 1 LB1 -> 1Watch out for lines, which may be wrapped if your browser window is too narrow.
To interpret the output, we need to refer to the ATmega128 datasheet. This chips hass three fuse bytes, the Fuse Low Byte, the Fuse High Byte and the Extended Fuse Byte.
In the extended byte, only the second fuse bit is programmed (0xfd is 11111101 in binary digits). The datasheet explains, that this bit is named M103C and enables the ATmega103 compatibility mode. This is probably not, what we want for running Nut/OS built for the ATmega128.
The high byte has four fuses programmed by default, BOOTSZ0 and BOOTSZ1 (second and third bit) as well as SPIEN and JTAGEN (sixth and seventh bit). While the first two can be ignored unless BOOTRST (first bit) is programmed, the latter should be kept unchanged. Unprogramming them would disable SPI or JTAG programming with exactly that meaning.
The low byte mainly controls the on-chip oscillator. With the default setting the ATmega runs with its internal RC oscillator at 1 MHz. Thus, the external crystal is not used and we can proof this with an oscilloscope. Changing these fuses is highly critical with an SPI programmer. There are quite many variations available and many of them require a special hardware other than the crystal we got on the Ethernut board. When the CPU clock is disabled somehow, SPI programming is no more available. One reason, why you should think about purchasing the SP Duo. JTAG programming is available without a running CPU clock.
We can use uisp to change the fuses to the Ethernut default setting. Again check for wrapped lines. All parameters upto --wr_fuse_e=0xff should be entered in one line.
# uisp -dprog=stk500 -dserial=/dev/ttyS0 -dspeed=115200 -dpart=atmega128 --wr_fuse_l=0x3f --wr_fuse_h=0x83 --wr_fuse_e=0xff Firmware Version: 49.48 Atmel AVR ATmega128 is found. Fuse Low Byte set to 0x3f Fuse High Byte set to 0x83 Fuse Extended Byte set to 0xffWhen using AVR Studio, you may refer to images in the bootloader settings at the end of this page.
Ethernut Factory Settings
We can call uisp on the command line to read the fuses. Again the following parameters are for the SP Duo connected to the first serial port.
# uisp -dprog=stk500 -dserial=/dev/ttyS0 -dspeed=115200 -dpart=atmega128 --rd_fuses Firmware Version: 49.48 Atmel AVR ATmega128 is found. Fuse Low Byte = 0x3f Fuse High Byte = 0x83 Fuse Extended Byte = 0xff Calibration Byte = 0x00 -- Read Only Lock Bits = 0xff BLB12 -> 1 BLB11 -> 1 BLB02 -> 1 BLB01 -> 1 LB2 -> 1 LB1 -> 1
EEPROM Settings
With the Ethernut default fuse settings, the EEPROM contents will not be changed by the programmer's chip erase. This has the advantage, that Basemon can be used to enter MAC address and IP configuration and that these settings will remain when loading a new application into Ethernut's FLASH memory.
However, there may be situations where you want clear the EEPROM contents. Fuse number 3 (the forth bit because we count from zero) of the Fuse High Byte needs to be unprogrammed to disable EESAVE (preserve EEPROM).
# uisp -dprog=stk500 -dserial=/dev/ttyS0 -dspeed=115200 -dpart=atmega128 --wr_fuse_h=0x8b Firmware Version: 49.48 Atmel AVR ATmega128 is found. Fuse High Byte set to 0x8b
Bootloader Settings

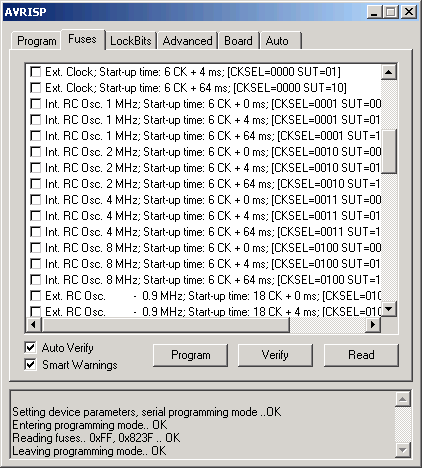

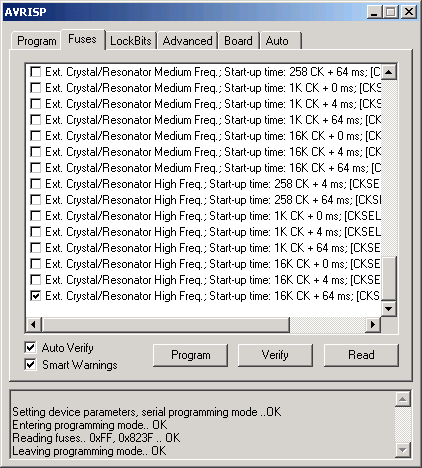

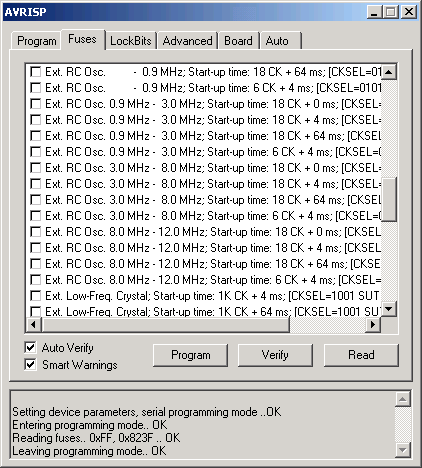

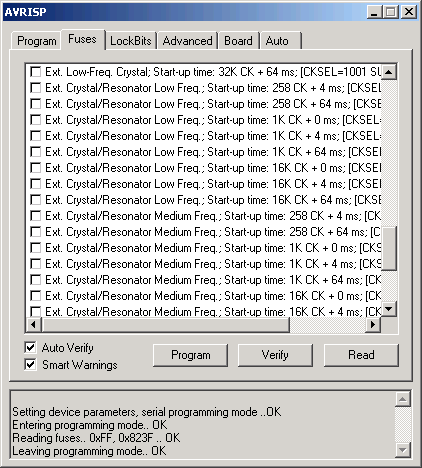

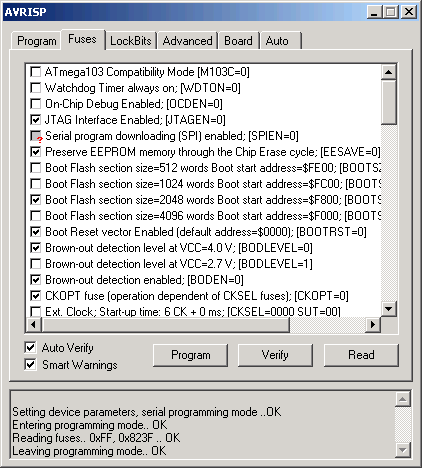

By default the ATmega128 starts running at FLASH memory address zero when the reset button is pressed or when the board is powered up. Some applications may require to start with the bootloader. Again we could use uisp the set the corresponding fuses. For the GUI fans among you, we present the full listing of the AVR Studio fuse dialog. Compared to the default settings, only the Boot Reset vector Enabled had been additionally checked. Thus, you may use the following images as a reference for the Ethernut default configuration.
Good luck! You may need this. :-)
