RFC 2236 Internet Group Management Protocol. More...

Collaboration diagram for IGMP:

Data Structures
struct	igmp
	IGMP packet structure. More...
struct	igmpv3
	IGMPv3 query format. More...
struct	igmp_grouprec
	IGMPv3 group record. More...
struct	igmp_report
	IGMPv3 report. More...
Defines
#define	IGMP_MINLEN 8
	Minimum IGMP packet length.
#define	IGMP_MEMBERSHIP_QUERY 0x11
	Membership query.
#define	IGMP_V1_MEMBERSHIP_REPORT 0x12
	Ver. 1 membership report.
#define	IGMP_V2_MEMBERSHIP_REPORT 0x16
	Ver. 2 membership report.
#define	IGMP_V3_MEMBERSHIP_REPORT 0x22
	Ver. 3 membership report.
#define	IGMP_V2_LEAVE_GROUP 0x17
	Leave-group message.
#define	IGMP_MAX_HOST_REPORT_DELAY 10
	Maximum delay for response query.
#define	IGMP_TIMER_SCALE 10
	Code field time scale.
#define	IGMP_EXCLUDE_LIST 1
	List identifiers.
#define	IGMP_INCLUDE_LIST 2
#define	IGMP_RECORDED_LIST 3
Typedefs
typedef struct igmp	IGMP
	IGMP packet type.
typedef struct igmp_report	IGMP_REPORT
Functions
void	NutIgmpInput (NUTDEVICE dev, NETBUF nb)
	Process incoming IGMP packets.
int	NutIgmpOutput (uint8_t type, uint32_t dest, NETBUF *nb)
	Send an IGMP datagram.
void	NutIgmpJoinGroup (NUTDEVICE *dev, uint32_t ip_addr)
void	NutIgmpLeaveGroup (NUTDEVICE *dev, uint32_t ip_addr)
IGMPv3 Report Types
#define	IGMP_REPORT_MODE_IN 1
	Mode-is-include.
#define	IGMP_REPORT_MODE_EX 2
	Mode-is-exclude.
#define	IGMP_REPORT_TO_IN 3
	Change-to-include.
#define	IGMP_REPORT_TO_EX 4
	Change-to-exclude.
#define	IGMP_REPORT_ALLOW_NEW 5
	Allow-new-sources.
#define	IGMP_REPORT_BLOCK_OLD 6
	Block-old-sources.
IGMPv3 Report Type Flags
#define	IGMP_MASK_CUR_STATE 0x01
	Report current-state.
#define	IGMP_MASK_ALLOW_NEW 0x02
	Report source as allow-new.
#define	IGMP_MASK_BLOCK_OLD 0x04
	Report source as block-old.
#define	IGMP_MASK_TO_IN 0x08
	Report source as to_in.
#define	IGMP_MASK_TO_EX 0x10
	Report source as to_ex.
#define	IGMP_MASK_STATE_T1 0x20
	State at T1.
#define	IGMP_MASK_STATE_T2 0x40
	State at T2.
#define	IGMP_MASK_IF_STATE 0x80
	Report current-state per interface.
#define	IGMP_MASK_STATE_TX (IGMP_MASK_STATE_T1 \| IGMP_MASK_STATE_T2)
#define	IGMP_MASK_PENDING (IGMP_MASK_CUR_STATE \| IGMP_MASK_ALLOW_NEW \| IGMP_MASK_BLOCK_OLD)

Detailed Description

RFC 2236 Internet Group Management Protocol.

Define Documentation

#define IGMP_MINLEN 8

Minimum IGMP packet length.

Definition at line 151 of file igmp.h.

Referenced by NutIgmpInput().

#define IGMP_MEMBERSHIP_QUERY 0x11

Membership query.

Definition at line 153 of file igmp.h.

Referenced by NutIgmpInput().

#define IGMP_V1_MEMBERSHIP_REPORT 0x12

Ver. 1 membership report.

Definition at line 154 of file igmp.h.

Referenced by NutIgmpInput().

#define IGMP_V2_MEMBERSHIP_REPORT 0x16

Ver. 2 membership report.

Definition at line 155 of file igmp.h.

Referenced by NutIgmpInput(), and NutIgmpJoinGroup().

#define IGMP_V3_MEMBERSHIP_REPORT 0x22

Ver. 3 membership report.

Definition at line 156 of file igmp.h.

#define IGMP_V2_LEAVE_GROUP 0x17

Leave-group message.

Definition at line 157 of file igmp.h.

Referenced by NutIgmpLeaveGroup().

#define IGMP_MAX_HOST_REPORT_DELAY 10

Maximum delay for response query.

Definition at line 162 of file igmp.h.

#define IGMP_TIMER_SCALE 10

Code field time scale.

Definition at line 167 of file igmp.h.

#define IGMP_REPORT_MODE_IN 1

Mode-is-include.

Definition at line 173 of file igmp.h.

#define IGMP_REPORT_MODE_EX 2

Mode-is-exclude.

Definition at line 174 of file igmp.h.

#define IGMP_REPORT_TO_IN 3

Change-to-include.

Definition at line 175 of file igmp.h.

#define IGMP_REPORT_TO_EX 4

Change-to-exclude.

Definition at line 176 of file igmp.h.

#define IGMP_REPORT_ALLOW_NEW 5

Allow-new-sources.

Definition at line 177 of file igmp.h.

#define IGMP_REPORT_BLOCK_OLD 6

Block-old-sources.

Definition at line 178 of file igmp.h.

#define IGMP_MASK_CUR_STATE 0x01

Report current-state.

Definition at line 185 of file igmp.h.

#define IGMP_MASK_ALLOW_NEW 0x02

Report source as allow-new.

Definition at line 186 of file igmp.h.

#define IGMP_MASK_BLOCK_OLD 0x04

Report source as block-old.

Definition at line 187 of file igmp.h.

#define IGMP_MASK_TO_IN 0x08

Report source as to_in.

Definition at line 188 of file igmp.h.

#define IGMP_MASK_TO_EX 0x10

Report source as to_ex.

Definition at line 189 of file igmp.h.

#define IGMP_MASK_STATE_T1 0x20

State at T1.

Definition at line 190 of file igmp.h.

#define IGMP_MASK_STATE_T2 0x40

State at T2.

Definition at line 191 of file igmp.h.

#define IGMP_MASK_IF_STATE 0x80

Report current-state per interface.

Definition at line 192 of file igmp.h.

#define IGMP_MASK_STATE_TX (IGMP_MASK_STATE_T1 | IGMP_MASK_STATE_T2)

Definition at line 194 of file igmp.h.

#define IGMP_MASK_PENDING (IGMP_MASK_CUR_STATE | IGMP_MASK_ALLOW_NEW | IGMP_MASK_BLOCK_OLD)

Definition at line 195 of file igmp.h.

#define IGMP_EXCLUDE_LIST 1

List identifiers.

Definition at line 201 of file igmp.h.

#define IGMP_INCLUDE_LIST 2

Definition at line 202 of file igmp.h.

#define IGMP_RECORDED_LIST 3

Definition at line 203 of file igmp.h.

Typedef Documentation

IGMP

IGMP packet type.

Definition at line 96 of file igmp.h.

typedef struct igmp_report IGMP_REPORT

Definition at line 97 of file igmp.h.

Function Documentation

void NutIgmpInput	(	NUTDEVICE *	dev,
		NETBUF *	nb
	)

Process incoming IGMP packets.

Parameters:

dev	Identifies the device that received the packet.
nb	Pointer to a network buffer structure containing the IGMP packet.

Definition at line 100 of file igmpin.c.

References _NUTDEVICE::dev_icb, IGMP_MEMBERSHIP_QUERY, IGMP_MINLEN, igmp::igmp_type, IGMP_V1_MEMBERSHIP_REPORT, IGMP_V2_MEMBERSHIP_REPORT, INADDR_ALLHOSTS_GROUP, _NETBUF::nb_tp, NutIgmpJoinGroup(), NutNetBufFree(), _NBDATA::sz, and _NBDATA::vp.

Referenced by NutIpInput().

Here is the call graph for this function:

int NutIgmpOutput	(	uint8_t	type,
		uint32_t	dest,
		NETBUF *	nb
	)

Send an IGMP datagram.

Known IGMP types are:

IGMP_MEMBERSHIP_QUERY Membership query.
IGMP_V1_MEMBERSHIP_REPORT Version 1 membership report.
IGMP_V2_MEMBERSHIP_REPORT Version 2 membership report.
IGMP_V2_LEAVE_GROUP Leave-group message.

Parameters:

type	IGMP packet type.
dest	Destination IP address.
nb	Network buffer structure containing the datagram.

Returns:: 0 on success, -1 otherwise.

Definition at line 102 of file igmpout.c.

References igmp::igmp_cksum, igmp::igmp_code, igmp::igmp_group, igmp::igmp_type, IPPROTO_IGMP, _NETBUF::nb_tp, NBAF_TRANSPORT, NutIpChkSum(), NutIpOutput(), NutNetBufAlloc(), _NBDATA::sz, and _NBDATA::vp.

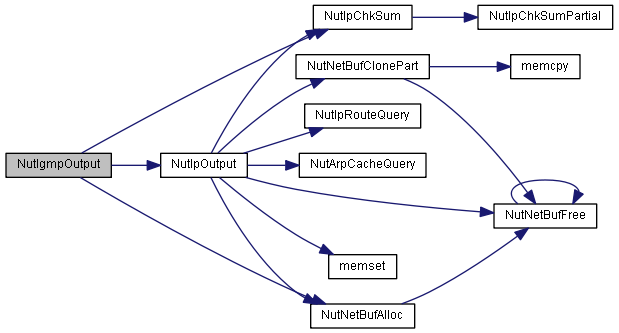

Here is the call graph for this function:

void NutIgmpJoinGroup	(	NUTDEVICE *	dev,
		uint32_t	ip_addr
	)

Definition at line 110 of file igmp.c.

References IGMP_V2_MEMBERSHIP_REPORT.

Referenced by NutIgmpInput(), and NutNetIfAddMcastAddr().

void NutIgmpLeaveGroup	(	NUTDEVICE *	dev,
		uint32_t	ip_addr
	)

Definition at line 115 of file igmp.c.

References IGMP_V2_LEAVE_GROUP.

Referenced by NutNetIfDelMcastAddr().
