RFC 826 address resolution protocol. More...

Collaboration diagram for ARP:

Data Structures
struct	_ARPENTRY
	ARP entry structure. More...
Defines
#define	ATF_REM 0x01
	Entry marked for removal.
#define	ATF_COM 0x02
	Completed entry.
#define	ATF_PERM 0x04
	Permanent entry.
Typedefs
typedef struct _ARPENTRY	ARPENTRY
	ARP entry type.
Functions
void	NutArpCacheUpdate (NUTDEVICE dev, uint32_t ip, uint8_t ha)
	Update an ARP entry.
int	NutArpCacheQuery (NUTDEVICE dev, CONST uint32_t ip, uint8_t mac)
	Query MAC address for a specified IP address.
void	NutArpInput (NUTDEVICE dev, NETBUF nb)
	Handle incoming ARP packets.
NETBUF *	NutArpAllocNetBuf (uint16_t type, uint32_t ip, uint8_t *mac)
	Allocate an ARP network buffer structure.
int	NutArpOutput (NUTDEVICE dev, NETBUF nb)
	Send an ARP packet.
ARP Configuration
The Nut/OS Configurator may be used to override the default values.
#define	MAX_ARPAGE 9
	Maximum age of an entry in the ARP cache in minutes.
#define	MAX_ARPREQUESTS 1
	Maximum number of ARP requests generated per query.
#define	MIN_ARPWAIT 500
	Minimum wait before sending out a new ARP request.

Detailed Description

RFC 826 address resolution protocol.

ARP is used to map IP addresses to hardware addresses. Each network interface of Nut/Net keeps its own mapping table.

When an IP packet has to be sent out, IP needs the hardware address to pass it to the Ethernet layer. If the mapping is not in the ARP cache, an Ethernet broadcast packet is sent to the local network requesting the physical hardware address for the given IP address.

Todo:

Add functions to manually add or remove ARP entries.

Add function to query ARP tables.

Todo:: Response may reuse received ARP packet.

Define Documentation

#define ATF_REM 0x01

Entry marked for removal.

Definition at line 125 of file if_var.h.

Referenced by NutArpCacheQuery().

#define ATF_COM 0x02

Completed entry.

Definition at line 126 of file if_var.h.

Referenced by NutArpCacheQuery(), and NutArpCacheUpdate().

#define ATF_PERM 0x04

Permanent entry.

Definition at line 127 of file if_var.h.

Referenced by NutArpCacheUpdate().

#define MAX_ARPAGE 9

Maximum age of an entry in the ARP cache in minutes.

Outdated entries will be regularly removed, forcing the Ethernet interface to generate new ARP requests. This way MAC address changes are detected.

Definition at line 200 of file arpcache.c.

#define MAX_ARPREQUESTS 1

Maximum number of ARP requests generated per query.

If no ARP response is received after sending out the specified number of request, the related IP address is considered unreachable.

Definition at line 211 of file arpcache.c.

Referenced by NutArpCacheQuery().

#define MIN_ARPWAIT 500

Minimum wait before sending out a new ARP request.

The specified number of milliseconds will be doubled on each retry.

Definition at line 221 of file arpcache.c.

Referenced by NutArpCacheQuery().

Typedef Documentation

typedef struct _ARPENTRY ARPENTRY

ARP entry type.

Definition at line 132 of file if_var.h.

Function Documentation

void NutArpCacheUpdate	(	NUTDEVICE *	dev,
		uint32_t	ip,
		uint8_t *	ha
	)

Update an ARP entry.

If an entry with the same IP address exists, then this entry is updated. If no entry exists, a new one is created. All threads waiting for address resolution are woken up.

Note:: This function is automatically called on each incoming ARP telegram. Applications typically do not call this function.

Parameters:

dev	Identifies the device.
ip	Requested IP address in network byte order.
ha	Pointer to a buffer which receives the MAC address.

Definition at line 393 of file arpcache.c.

References __tcp_trf, __tcp_trs, _ARPENTRY::ae_flags, _ARPENTRY::ae_ha, _ARPENTRY::ae_outdated, _ARPENTRY::ae_tq, ATF_COM, ATF_PERM, _NUTDEVICE::dev_icb, fprintf(), fputc(), inet_ntoa(), memcpy(), and NutEventBroadcast().

Referenced by NutArpInput().

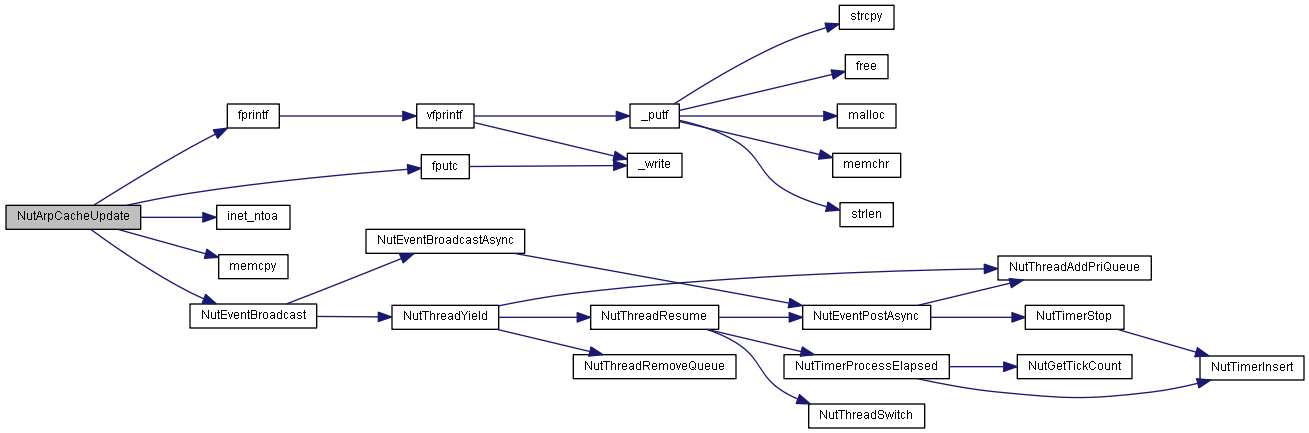

Here is the call graph for this function:

int NutArpCacheQuery	(	NUTDEVICE *	dev,
		CONST uint32_t	ip,
		uint8_t *	mac
	)

Query MAC address for a specified IP address.

If no entry is available in the ARP cache, an incomplete entry is created and ARP requests are generated on increasing time intervals. The calling thread is suspended until a matching ARP response is received or until a number of requests have been generated without receiving a response.

Note:: This function is automatically called on each outgoing IP packet. Applications typically do not call this function.

Parameters:

dev	Identifies the device.
ip	IP address of which the caller asked the MAC address.
mac	Buffer for the retrieved MAC address.

Returns:: 0 if address resolved, -1 otherwise.

Definition at line 448 of file arpcache.c.

References __tcp_trf, __tcp_trs, _ARPENTRY::ae_flags, _ARPENTRY::ae_ha, _ARPENTRY::ae_tq, ARPOP_REQUEST, ATF_COM, ATF_REM, _NUTDEVICE::dev_icb, fprintf(), inet_ntoa(), MAX_ARPREQUESTS, MIN_ARPWAIT, NutArpAllocNetBuf(), NutArpOutput(), NutEventWait(), and NutNetBufFree().

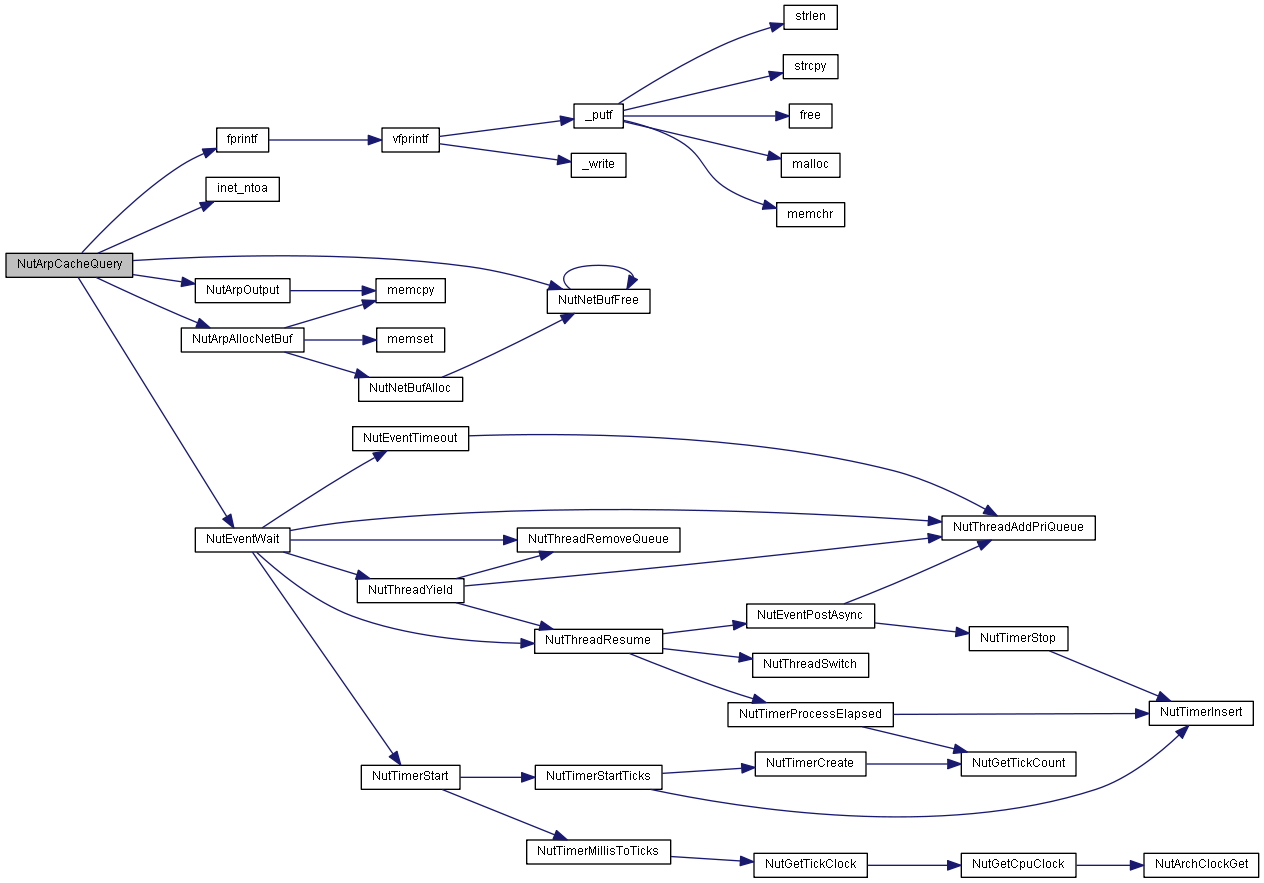

Here is the call graph for this function:

void NutArpInput	(	NUTDEVICE *	dev,
		NETBUF *	nb
	)

Handle incoming ARP packets.

Packets not destined to us or packets with unsupported address type or item length are silently discarded.

Note:: This routine is called by the Ethernet layer on incoming ARP packets. Applications typically do not call this function.

Parameters:

dev	Identifies the device that received the packet.
nb	Pointer to a network buffer structure containing the ARP packet.

Definition at line 143 of file arpin.c.

References arphdr::ar_hln, arphdr::ar_hrd, arphdr::ar_op, arphdr::ar_pln, arphdr::ar_pro, ether_arp::arp_sha, ether_arp::arp_spa, ether_arp::arp_tpa, ARPHRD_ETHER, ARPOP_REPLY, ARPOP_REQUEST, _NUTDEVICE::dev_icb, ether_arp::ea_hdr, ETHERTYPE_IP, htons, ifnet::if_local_ip, _NETBUF::nb_nw, ntohs, NutArpAllocNetBuf(), NutArpCacheUpdate(), NutArpOutput(), NutNetBufFree(), _NBDATA::sz, and _NBDATA::vp.

Referenced by NutEtherInput().

Here is the call graph for this function:

NETBUF* NutArpAllocNetBuf	(	uint16_t	type,
		uint32_t	ip,
		uint8_t *	mac
	)

Allocate an ARP network buffer structure.

Parameters:

type	Type of ARP packet.
ip	Target IP address.
mac	Target MAC address, null pointer for broadcast.

Returns:: Pointer to the allocated network buffer structure or 0 on failure.

Definition at line 141 of file arpout.c.

References arphdr::ar_hln, arphdr::ar_hrd, arphdr::ar_op, arphdr::ar_pln, arphdr::ar_pro, ether_arp::arp_tha, ether_arp::arp_tpa, ARPHRD_ETHER, ether_arp::ea_hdr, ETHERTYPE_IP, htons, memcpy(), memset(), _NETBUF::nb_nw, NBAF_NETWORK, NutNetBufAlloc(), and _NBDATA::vp.

Referenced by NutArpCacheQuery(), and NutArpInput().

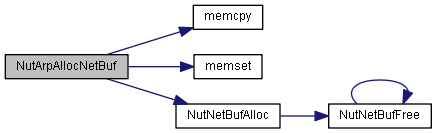

Here is the call graph for this function:

int NutArpOutput	(	NUTDEVICE *	dev,
		NETBUF *	nb
	)

Send an ARP packet.

Note:: Applications typically do not call this function.

Parameters:

dev	Identifies the device to use.
nb	Network buffer structure containing the packet to be sent. The structure must have been allocated by a previous call NutNetBufAlloc().

Returns:: 0 on success, -1 in case of any errors.

Definition at line 186 of file arpout.c.

References ether_arp::arp_sha, ether_arp::arp_spa, ether_arp::arp_tha, _NUTDEVICE::dev_icb, ETHERTYPE_ARP, ifnet::if_local_ip, ifnet::if_mac, ifnet::if_output, memcpy(), _NETBUF::nb_nw, and _NBDATA::vp.

Referenced by NutArpCacheQuery(), and NutArpInput().

Here is the call graph for this function:
